Case IH

Large Square Baler Applicators

2021 - Selection Guide
(Applicator Part Numbers)

Introducing the New 700 Series Automatic Applicator for Large Square balers! This automatic applicator  replaces the 600 series and will make adding preservative to your hay crop even easier and more efficient  than ever before!

Layout of the 700 Series Components

Key Design Improvements

- Single bypass pump supplying constant pressure to pulsating solenoid valves for improved response time to changes in moisture. This means no lag in preservative application while pump has to build up pressure

- Improved flowmeter that works on a range of products

- Display applicator readings on dedicated Virtual Terminal, Apple tablet, or Android tablet o Free Precision Baling App from Apple iTunes or Google Play store when using an approved tablet. Click here to see the control options and functions



Same industry leading accuracy for the 700 Series Automatic Applicator

Using side-to-side moisture reading technology, the automatic applicator reads crop moisture across the width of the bale near the front of the chamber via moisture sensing dual star wheel  sensors for large square balers. The sensor will read crop moisture from 5% up to 70% for those  customers that make high moisture bales as well as dry bales.

Key New Features of the 700 Series Automatic Applicator

▪ Single pump means less maintenance ▪ More reliable baling rate generated from internal star wheel encoder
▪ New style flow meter with improved reliability ▪ Larger tips that prevent plugging at spray shield
▪ Lower up-front cost on complete applicator ▪ Superior sealing Deutch plugs throughout harnesses
▪ Optional Harvest Tec dedicated monitor ▪ Optional tablet monitor – use either Apple or Android approved devices
▪ Update applicator settings while in operation ▪ Reopen existing job record and add to it
▪ Dual solenoids allow for large range of baling rates covered with each tip, and shuts  product off to eliminate any dripping



Updates on the 700 Series System

Electronic Applicators (manual)

Operators that are interested in a more simplified system also have the option of an Electronic Applicators system for large square balers. Equipped with a high-capacity 115-gallon tank mounted on the rear of the baler, and a control box in the cab of the tractor. The operator is in complete control of the application adjustments

700 Series Automatic or Electronic

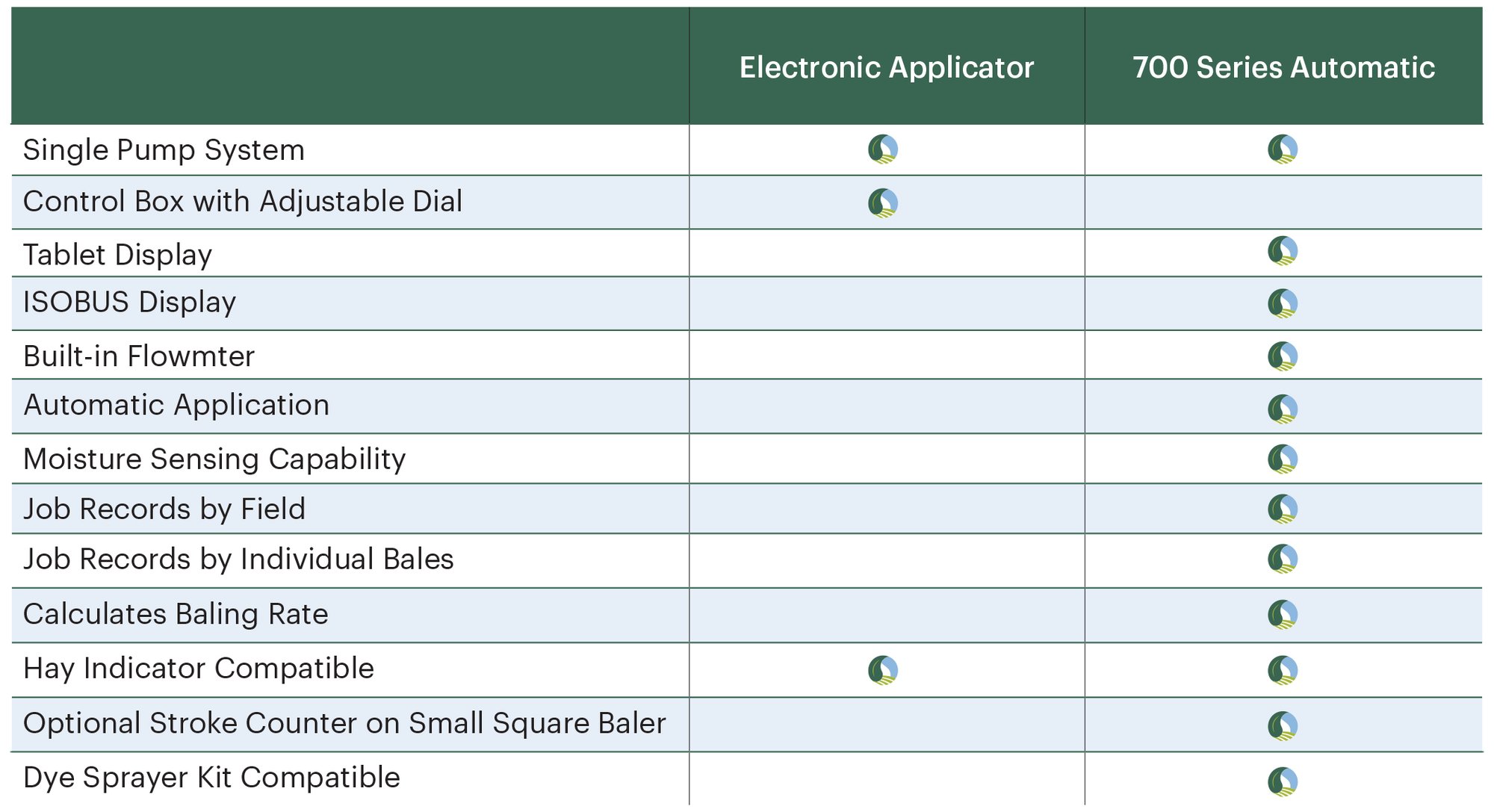

Comparison of Applicator Controls

Electronic Applicator 700 Series Automatic
Single Pump System X X
Control box with Adjustable Dial X
iPad Display X
Android Display X
ISOBUS Display X
Harvest Tec VT Display X
Automatic Application X
Moisture Sensing Capabilities X
Job Records X
Calculates Baling Rate X
Hay Indicator Compatible (Crop Eyes) X X
Dye Marker Compatible X
RFV Compatible X
Microwave Moisture Compatible X

Applicators for Round Balers

442X 0352021 - Selection Guide
(Applicator Part Numbers)

Hay preservative can be used to bale large round bales between 16% and 30% moisture. You have the option of a 25-gallon or, on certain models, a 55-gallon application system. The system mounts to the tongue of the baler and holds enough preservative to treat 30 to 60 tons of hay. Depending on your need, choose the new 300 series automatic system, a 600 series commercial automatic system, an electronic system, or an economical manual control system (available in 25-gallon only).

Click the link HERE to see the video of the new 300 Series Applicator

Moisture Sensors for Round Balers

Automatic systems for round balers are equipped with two moisture sensing discs, one mounted on each of the baler side walls, sensing moisture across the width of the bale via conductivity. The sensors can accurately read crop moisture from 8% to 60%, covering a wide range of moisture levels.

SONY DSC

Moisture disc shown mounted on round baler

Product Specs

All applicators come as complete kits designed to fit your specific baler, and consist of:

Comparison of Applicator Controls

Electronic Applicator 300 Series Automatic 600 Series Automatic
Single Pump System X X
3-Pump Manifold X
Control Box with Adjustable Dial X
iPad Display X X
IOSBUS Display X
Built-in Flowmeter X X
Automatic Application X X
Moisture Sensing Capability X X
Job Records by Field X X
Job Records by Individual Bales X
Calculates Baling Rate: Round Baler X
Calculates Baling Rate: Small Square Baler, Large Square Baler X X
Export Job Records to iPad X
Hay Indicator Compatible X X X
Stroke Counter on Small Square Baler X
Dye Sprayer Kit Compatible: Small Square Baler, Large Square Baler X
Tagger Compatible: Large Square Baler X

Applicators for Small Square Balers

2021 - Selection Guide
(Applicator Part Numbers)

Get started baling earlier and bale longer with the addition of a preCIH SS 017 servative application system to your small square baler. Systems are available in 25-gallon or 55-gallon units and mount on the back frame, side of the baler, or top, depending on your model of baler. Choose between a new 300 series automatic control system, a 600 series commercial automatic system, or an electronic or manual control system.

Click the link HERE to see the video of the new 300 Series Applicator

Moisture Sensors for Small Square Balers



Automatic systems for small square balers are equipped with two star wheel moisture sensors mounted on the bottom of the bale chute, sensing moisture across the width of the bale via conductivity. The sensors can accurately read crop moisture from 8% to 60%, covering a wide range of moisture levels. As the star wheels turn, they also calculate tonnage, helping the system apply preservative even more accurately.

bc5070_194_m-1

Star wheel sensors mounted on small square baler

Product Specs

All applicators come as complete kits designed to fit your specific baler, and consist of:

Comparison of Applicator Controls

Electronic Applicator 300 Series Automatic 600 Series Automatic
Single Pump System X X
3-Pump Manifold X
Control Box with Adjustable Dial X
iPad Display X X
IOSBUS Display X
Built-in Flowmeter X X
Automatic Application X X
Moisture Sensing Capability X X
Job Records by Field X X
Job Records by Individual Bales X
Calculates Baling Rate: Round Baler X
Calculates Baling Rate: Small Square Baler, Large Square Baler X X
Export Job Records to iPad X
Hay Indicator Compatible X X X
Stroke Counter on Small Square Baler X
Dye Sprayer Kit Compatible: Small Square Baler, Large Square Baler X
Tagger Compatible: Large Square Baler X

700 Series Automatic Control System

Large Square balers

The 700 Automatic Applicator control system is the premier applicator for large square balers. It accurately senses moisture on-the-go and adjusts the application of preservative every three seconds to match the condition of the hay.

This precision gives the operator the exact amount of product required to keep the crop in great condition, without wasting product. The all new 700 automatic system for large square balers can be controlled through the baler ISOBUS display, iPad or Android tablet. Giving complete control to the operator more efficiently as ever without the need for a separate monitor in the cab.
The display shows moisture content, speed of baling, and how much preservative is being applied. This control adjusts application rate every three seconds to attain the target rate.







The 700 Series can be controlled one of four ways:

-ISOBUS compatible, the applicator can be integrated and displayed through the baler monitor in the cab- no other display is needed.

-Through an ISOBUS tractor with a VT display and is not using it to control the baler, the applicator functions can be viewed through the tractor display.

-iPad controlled through the Precision Baling App

-Android controlled through the Precision Baling App

A simple push on the Main Menu key pulls up a selection of other screens including the adjustable settings and a Job Record screen. The system stores up to 300 job records by field, including date and time of baling, number of tons baled, product used and the average moisture and high moisture. The system will also store up to 33,000 individual bale records within those job records, and all of the job records can be exported to the iPad, or downloaded and printed via a USB port on the processor for easy and efficient access to crucial bale information.

The new Dye Sprayer Marking Kit that is found on large square balers can now be used on small square balers, allowing the operator to visibly mark the wet bales. GPS systems and bale scale kits can also be used with the 600 Series Automatic Applicator, helping the baling operation become more advanced and efficient than ever before.

Round and Small Square Balers

The 600 Automatic Applicator is the choice of applicator for the round or small square operator that makes hay commercially or is looking for the added performance and capabilities of the 600 system. On small square balers, the 600 system reads the moisture and tonnage with two star wheel sensors, and also has a stroke counter that records the number of strokes per bale, and an end of bale sensor, to record individual bale information like the large square system does.

The 600 system on round balers reads moisture with two discs in the bale chamber up to 70% moisture, and also has a sensor on the bale door to record individual bale records. Both systems have the ability to store and download job and individual bale records via USB and export via iPad.

300 Series Automatic Control System

Round and Small Square Balers

case-ih

The 300 series automatic control system is a more compact and efficient applicator that accurately senses moisture on the go and adjusts the application of preservative to match the condition of the hay. This precision give the operator the exact amount of product required to keep their crop in great condition, without wasting product. The 300 Series applicator is controlled with an iPad* through a Bluetooth receiver, eliminating harnesses in the cab.

New improvements to the 300 Series Automatic Applicator include:

  • Single constant-pressure pump with pulsing solenoid that reacts quickly to changes in application rates
  • Improved flowmeter that works on a range of products
  • Smaller and more compact system that is easier to install and maintain

The applicator takes moisture and baling rate information from the two star wheel sensors on small square balers, and two moisture discs in the bale chamber on round balers, and the system will automatically apply the correct amount of product. The moisture, tonnage, and rates are all displayed on the screen, along with the volume used. A simple push of any Main Menu key pulls up a selection of other screens including adjustable settings and a Job Records screen. The system stores 63 jobs by date and time, number of tons baled, product used, and high and average moisture.

Click the link HERE to see the video of the new 300 Series Applicator

*iPad Mini or iPad 3rd Generation (2012) or newer, running the current iOS operating system or one previous version required for iPad option

Electronic Control System

All balers models

electric_controlsThe electronic cab control is a solid state electronic pump control used for large round and large square balers. The control is mounted in the cab or on the fender. Application rate is quickly and easily adjusted from the operator s seat. Once set, the electronic control will hold the application rate constant. This unit is included with all 25-and 55-gallon applicators with electronic control. It is also included with 110-gallon applicators with electronic control for large square balers.

Manual Control Systems

The manual pressure regulator provides full-rate adjustment at the applicator, which is controlled on the baler. This economical control is available for 25-gallon applicators only. *There is no regulation control in the cab of the tractor with this unit.

Your hay is important. Make sure your preservative does what it says it will.

Find out more >>

Hay Indicator (Crop-Eyes)

The hay indicator sensors see when hay enters the balers pick-up and activates the preservative application. When no crop is coming into the baler, the system will pause on its own, while being ready to apply when crop once again enters the baler.

Part# C474A - Pre-700 Series Automatic Applicator & Electronic Systems

Part #C474C - 700 Series Automatic Applicator


jd_acc_trans

Transfer Pumps

To transfer ThrityPlus Hay Preservative safely and easily from your storage container to your applicator tank, use any of the following transfer pumps:

Model 9214: For a rapid transfer rate of 14 gallons per minute, this 12-volt unit can get the job done quickly.

Model 9212: This standard output, 12-volt model, will transfer preservative at a rate of 4 gallons per minute.

Model 9213: This inexpensive hand transfer pump is ideal for transferring small amounts of preservative easily.


jd_acc_flowmeter

Flow Meter

Part# C453

Digital Electronic Flow Meter For use with any preservative applicator delivering between 40 and 500 pounds per hour. The flow meter reads the application rate in pounds per hour and total pounds used. This unit is for electronic and manual control systems only.





H2O Precision Moisture Sensor

The H2O Precision Moisture Sensor is a new moisture option for Small Square, Round and Large Square balers. Two discs or star wheels mount in the bale chamber and read moisture with the patented side-to-side technology. Allowing accurate readings up to 60% moisture on the round and large square balers, and up to 33% on small squares.

The H2O Precision Moisture Sensor is controlled with your Apple or Android smart phone or tablet via a hardwired connection and free app.

Part# C201RB - Round Balers

Part# C201SS - Small Square Balers

Part# C201LS - Large Square Balers

Part# C201LSHD - High Density Large Square Balers




jd_acc_applicatorswitch

Applicator Pause Switch

Part# C475

The floor-mounted applicator pause switch is an inexpensive addition to your application system the enables the operator to easily stop and start the applicator. For use with any automatic application system, 2005 and newer.


dye_sprayer_marking

Dye Sprayer Marking System

The Dye Sprayer Marking System is a simple way to visibly mark the wet areas on your large square bales. Compatible with the 600 & 700 Series Automatic Applicator or moisture only system for any large square baler. The 3-gallon system is mounted near the bale chamber and when the adjustable high moisture alarm sounds, the system will spray a red-colored, food-grade dye on the exact location on the bale for a quick and easy reference.

Part# C840 - 600 Series

Part# C740DM - 700 Series



Microwave Moisture Sensors

Part No. C700EWS
Read your moisture accurately and quickly with microwave sensors that are located in the pre-compression chamber. Kit includes two sensors and harness.

Part No. C701EWS
Microwave sensor kit for use with a steamer. Mounted in the back of the chamber, the sensors accurately read artificial moisture in the bale


gps_attachment

GPS Interface Kit

By incorporating the GPS into the Model 600 or 700 system the producer has the ability to create yield maps for their crops, allowing them to gain the knowledge needed to maximize productivity. The kit consists of a removable data storage card and GPS interface harness that is compatible with the Trimble 162 AgGPS, which is purchased separately from a Trimble dealer.

Part# C780GPS - 700 Series

Part# C880GPS - 600 Series

300 & 700 Series Automatic Applicator kits DO NOT include display

Made for iPad® (3rd through 2nd generation), running the correct iOS operating system
or one version previous is required for iPad operation
*iPad is a trademark of Apple Inc., registered in the U.S. and other countries.

*Contact Your Local CaseIH Dealer For Pricing*

Large Square Balers - 110 & 115 Gallon Tank Application Systems

Baler Model 700 Series Automatic Applicator Electronic Control Applicator Upgrade to Automatic Applicator
8585 C7964492C C4914492 C7654492C
8570, 8575 C7964490C C4914490 C7654490C
8580, 8590 C7964491C C4914491B C7654491C
LBX331, 332, 431, 432, LB333, LB433
Standard or Packer
C7964495C C4914495B C7654495C
LBX331, 332, 431, 432, LB333, LB433
w/RotoCut
C7964497C C4914497 C7654497C
LB433 Standard / Packer, 2011 or newer C7964528C C4914528 C7654528C
LB433 w/RotoCut, 2011 or newer C7964529C C4914529 C7654529C
LB234 C7964532C** C4914532** C7654532C
LB334 Standard or Packer C7964533C** C4914533** C7654533C
LB334 w/RotoCut C7964635C** C4914535** C7654635C
LB434, LB434XL Standard or Packer C7964534C** C4914534** C7654534C
LB434, LB434XL w/RotoCut C7964636C** C4914536** C7654636C
LB436HD C7954636C C4904536 Contact HT
**Exclusive to CNH Dealers Only, 115 Gallon Tank

Small Square Balers - 25 Gallon Tank Application Systems

Baler Model 300 Series Automatic Applicator Electronic Control Applicator Manual Applicator Upgrade to 300 Automatic
SBX520, SB521 C3454409C C4414409 C4394409 C3U54409C
SBX 530, 540, 550,SB531, SB541, SB551 C3454415C C4414415 C4394415 C3U54415C

Small Square Balers - 55 Gallon Tank Application Systems

Baler Model 600 Series Automatic
Applicator
300 Series Automatic
Applicator
Electronic Control
Applicator
Manual
Applicator
Upgrade to 300 Automatic
8500 Series C6444416B C3444416C C4344416 C4324416 C3U44416C
SBX 530, 540, 550
SB531, SB541, SB551
C6514415B C3514415C C4404415 N/A C3U54415C

Round Balers - 25 Gallon Tank Application Systems

Baler Model 600 Series Automatic Applicator 300 Series Automatic
Applicator
Electronic Control
Applicator
Manual
Applicator
Upgrade to 300 Automatic
8400 N/A C3464484C C4414484 C4394484 C3U64484C
RB444 N/A C3464484C C4414484 C4394484 C3U64484C
RB454, 464 C64725 C34725 C44225 N/A C3U725
RBX442, 443, 451, 461, 561 N/A C3464484C C4414484 C4394484 C3U64484C
RBX452, 453, 462, 463
(4' wide twine only - Contact HT)
C64725 C34725 C44225 N/A C3U725
RB455A Utility Baler N/A C347U C442U N/A C3U7U

Round Balers - 55 Gallon Tank Application Systems

Baler Model 600 Series Automatic
Applicator
300 Series Automatic
Applicator
Electronic Control
Applicator
Upgrade to 300 Automatic
RB554, 564 C64755 C34755 C44255 C3U755
RBX552, 553, 562, 563, 564 C64755 C34755 C44255 C3U755
RB455, 465, 560, 565 C647C C347C C442C CU7C

MOISTURE ONLY SYSTEMS

Baler Style 600 Series Moisture Only Upgrade to Auto Applicator
Small Square C201SS N/A
  C300SS Contact Harvest Tec
RB Round Baler C201RBC
(H2O Precision Moisture Kit)
N/A
  C300RBC Contact Harvest Tec
RBX Round Baler C201RB
(H2O Precision Moisture Kit)
N/A
  C300RB Contact Harvest Tec
Large Square C201LS N/A
  C700 Contact Harvest Tec
Large Square (LB Balers) C700BB Contact Harvest Tec
Large Square HD C700BBHD

ACCESSORIES

Description Part Number
400 Series iPad Conversion Kit (Bluetooth receiver) C4672B
600 Series iPad Conversion Kit (Hardwired receiver) C6672C
iPad Mini Mounting Kit C2012MK
iPad Mini & Mounting Kit Combo (iPad Mini, mount, charger) C4670DK
Harvest Tec Display Kit *700 Series Only C7670DK
Baler Mounted Moisture Tester CFX2000
Hay Indicators (Crop-Eyes) C474A
Hay Indicators (Crop-Eyes) *700 Series Only C474C
Dye Marking System *700 Series Only C740DM
Dye Marking System C0840
H2O Precision Moisture Kit Dye Marker
C200DM
RFV Dye Marking System C845RFV
700 Series GPS C780GPS
Microwave Moisture Kit (pre-compression chamber) C700EWS
Microwave Moisture Kit (end of bale chamber) C701EWS
12V Electronic Transfer Pump (4 Gal/Min) C9212
12V Electronic Transfer Pump (15 Gal/Min) C9214
110V Electronic Transfer Pump (4 Gal/Min) C9215

Request Information

    First Name (required)

    Last Name (required)

    Company

    Address (required)

    City (required)

    State (required)

    Postal (required)

    Phone (required)

    Your Email (required)
