Hay & Forage Moisture Sensing

Baler Moisture Sensors

Real-time moisture data, right where you need it. Our standalone sensors install easily on hay balers to help you make faster, smarter decisions in the field. No applicator required—just accurate readings you can rely on.

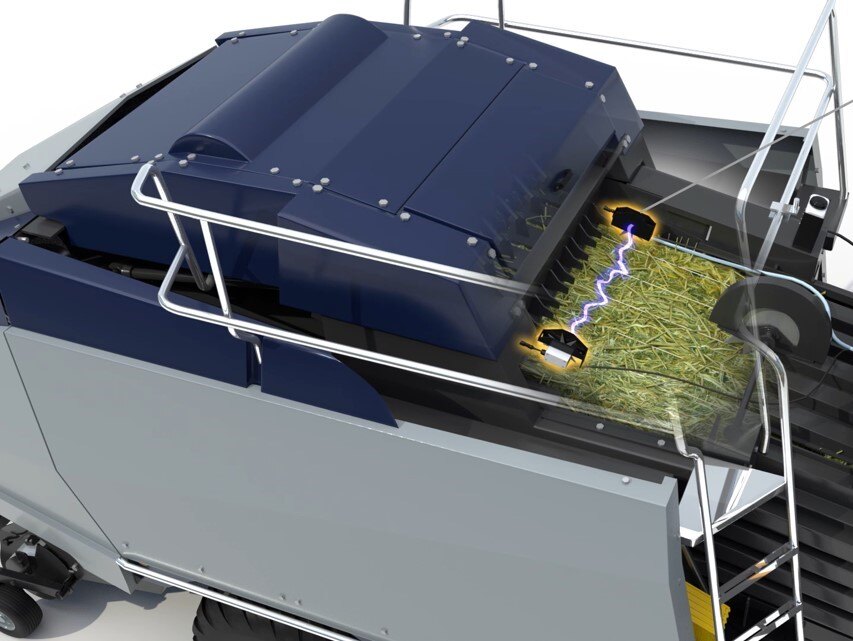

Large Square generic2
The Options

Hay & Forage Moisture Sensors

H2O

H2O Precision Moisture Sensor

The H2O Precision Moisture Sensor is the perfect addition to your baler to identify hay moisture variations in the windrow while baling and is designed for the operators who demands the accuracy of the on-board moisture sensors, but do not need a full preservative applicator.

Designed to fit any make or model of Large, Round, or Small Square Baler.

The system is equipped with:

  • In-Chamber Moisture Sensors (Star wheel style for Large and Small Squares and Disc Style for Round Balers)
  • Processor Control Box
  • All Harnesses and Mounting Components

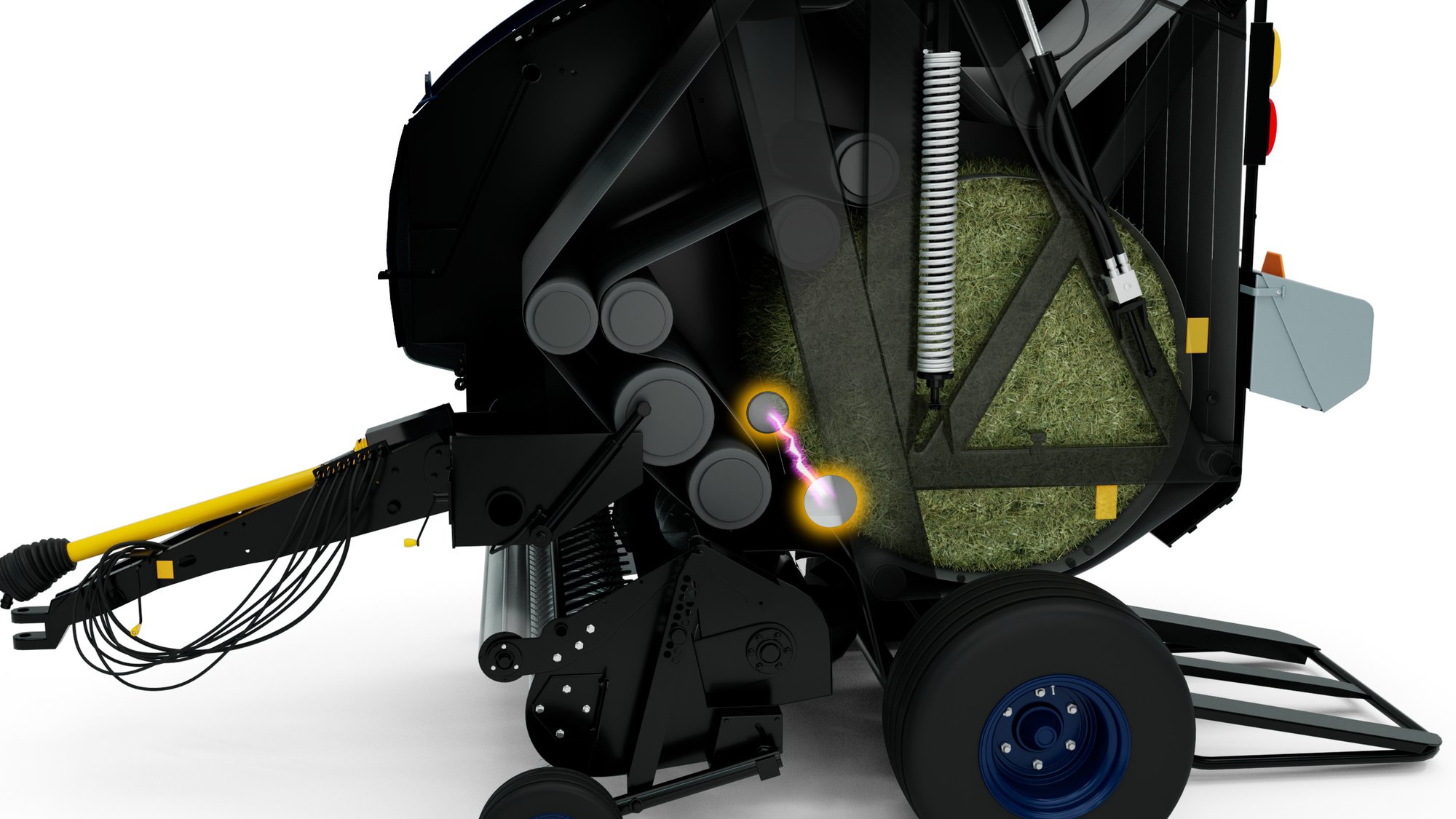

Round baler disc sensor no Panel 4.12.23

The kit uses the operators Apple or Android smart phone or tablet as the monitor, which is wired to the control box via a USB cable, and through the free H2O app available on the App Store or Google Play Store.

H2O Moisture Only Kit Part #s:
H20 Moisture Kits for Large Square Balers (displays moisture up to 60%):
  • Universal H20 Sensor for all Large Square Balers (2 bolt star wheel block sensors)-Part #: 201LS

H20 Moisture Kits for Round Balers (displays moisture up to 60%):

H2O Sensor for High Density Balers (Moon shaped discs): Part #: 201RBC
  •  Models–
    • New Holland Roll-Belt Series
    • Case IH RB5 Series
    • McHale and Kubota BV Series
Universal H20 Sensor for Round Balers (Round discs): Part #: 201RB
  • All other models

*Fixed chambers balers require End of Baler Sensor Kit: Part #: 200FCA

H20 Moisture Kits for Small Square Balers (displays moisture up to 32%):
  • Universal H2O Sensor for all Small Square Balers (star wheel sensors)- Part#: 201SS
Harvest Tec has an all-new Forage Harvester H20! Check out all the information HERE!
Accessories for H2O Moisture Kits:
  • Optional Dye Marker Kit (Includes 200FCA kit): 200DM
  • Red Dye package for Dye Marker Kit (mixes with water, marks 50-60 bales): 0800
  • End of Bale Sensor Kit: 200FCA
  • Field Ready Android tablet & case, RAM mount, & all Harvest Tec apps preloaded: 1670DK
  • Field Ready iPad Mini tablet & case, RAM mount, & all Harvest Tec apps preloaded: 4670DK
700

700 Moisture Only System

If you are looking for a system with all the capabilities of a complete Harvest Tec applicator but you don't need to apply preservative, the 700 Moisture Only System is for you! It has all the top-of-the-line moisture sensors plus baler integration capabilities, ability to keep job records and the option of upgrading to a complete applicator system down the road if you decide to do so.

star wheels

 Designed to fit any make or model of Large, Round, or Small Square Baler.

The system is equipped with:

  • In-Chamber Moisture Sensors (Star wheel style for Large and Small Squares and Disc Style for Round Balers)
  • Processor Control Box
  • All Harnesses and Mounting Components

The kit uses the operators Apple or Android tablet as the monitor, which is wired to the control box via a USB cable, and through the free Precision Baling App available on the App Store or Google Play Store.

700 Moisture Only Kit Part #s:
700 Moisture Only Kits for Large Square Balers (displays moisture up to 70%):
  • AGCO Model Balers 2100 and 2200 Series: 700A
  • AGCO Model 2233, 2234, 2234XD, 2244: HT200A2 (See Bulletin Here)
  • Case IH 4 series / New Holland BB Balers: 700BB
  • Case & New Holland HD Baler: 700BBHD
  • John Deere L330, L340 Balers: 700J
  • Claas Quadrant and Krone HDP Balers (side mounted star wheels): 700CL*
  • Large Square Balers not listed: 700*

*Baler ISO Integration is not available. Will need to use a tablet as a display.

Contact HT for 700 Series Moisture Only Preservative Completion Kit Availability

700 Moisture Only Kits for Round Balers (displays moisture up to 60%):
  • Round Balers: 700RB

To control, you can use a tablet or a dedicated ISOBUS display with use of optional 006-7670A adapter harness.  Watch HERE.

Contact HT for 700 Series Moisture Only Preservative Completion Kit Availability.

700 Moisture Only Kits for Small Square Balers (displays moisture up to 32%):
  • Small Square Balers: 700SS

To control, you can use a tablet or a dedicated ISOBUS display with use of optional 006-7670A adapter harness.  Watch HERE.

Contact HT for 700 Series Moisture Only Preservative Completion Kit Availability

Accessories for 700 Moisture Only Kits:
  • Field Ready Android tablet & case, RAM mount, & all Harvest Tec apps preloaded: 1670DK
  • Field Ready iPad Mini tablet & case, RAM mount, & all Harvest Tec apps preloaded: 4670DK
  • Adapter Harness for Tractor ISOBUS Display: 006-7670A
    • If your tractor has a dedicated ISOBUS display that you would like to use to control the Harvest Tec system, the 006-7670A adapter harness will allow you to do so. Check out our install video HERE to see how!
Microwave

Economy Microwave Moisture System

The most efficient, cost-effective Microwave moisture monitor for Large Square Balers with industry leading accuracy, the Economy Microwave Moisture Sensor from Harvest Tec is the answer. Using side-to-side, non-contact microwave moisture reading technology, the kit reads bale moisture across the width of the bale in the chamber via 1 transmitter and 1 receiver sensor. The sensors will accurate readcrop moisture from 6% up to 40%.

The system is equipped with:

  • 2 Microwave Moisture Sensors & Mounting Brackets
  • Processor Control Box
  • Power & Communication Harnesses
    • Harness from Microwave to Tractor Cab Controller
    • 25′ extension harness available when adding additional baling implements
  • Moisture Displayed thru most baler ISO Displays Integrating at Display Diagnostic Plug in Cab of Tractor or Apple or Android Tablet

Designed to fit any make or model of Large Square Baler and will mount at the back of the bale chamber.

Microwave Moisture Kit Part #s:
Economy Microwave Sensor for large square balers- Part #: 77E
  • Models – AGCO 21/2200 series – integrates into baler monitor
  • Models – Case IH 334, 434, 436HD. New Holland 230, 330, 340, 340HD, 1270, 1290, 1290HD – integrates into baler monitor
  • Models – Krone models equipped with CCi1200 monitor – integrates as split screen feature
  • Models – All other large square balers – utilize separate tablet (not included) with FREE Precision Bale App
    • Some rear bracket modifications may be required
Accessories for Economy Microwave Kit:
  • Optional Dye Marker Kit for 77E Microwave Sensor: 740DM
  • Red Dye package for Dye Marker Kit (mixes with water) :0800
  • 25’ extension harness for Staheli West steamer: 006-765FMX
  • Field Ready Android tablet & case, RAM mount, & all Harvest Tec apps preloaded: 1670DK
  • Field Ready iPad Mini tablet & case, RAM mount, & all Harvest Tec apps preloaded: 4670DK
It's better together.
- Our products are all a part of a total solution -
HP
BA
HA
MS
DS
AS
